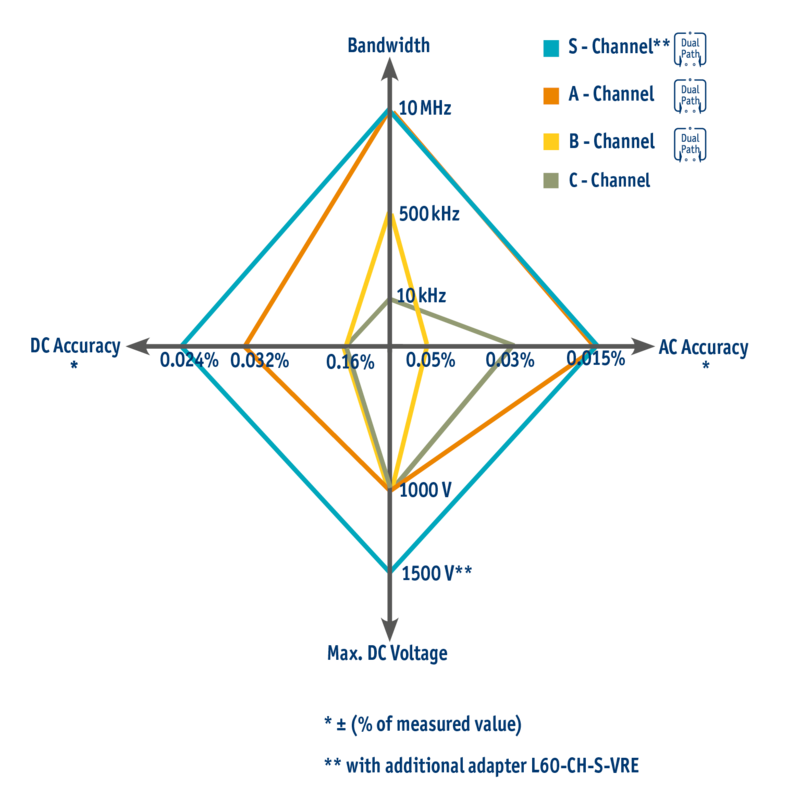

One-shot Results for Narrowband, Full Spectrum and Harmonics or some trade offs for a lower price?
Decide yourself how to combine the various power measurement channels. We have them for every
LMG of the 600 family in stock.
| L60-CH-S
|
S-Channel for high-precision broadband and DC-optimized measurements
|
|
|
DC-optimized,
supports DualPath functionality with full bandwidth of DC-10 MHz
Best power accuracy 0.015% + 0.01%
Measuring channel resolution 18 bit
Max. 1000V/CAT II, 600V/CAT III, 300V/CAT IV
Measuring inputs
1. Voltage directly: Utrms = 300 mV...1000 V / Udc = 300 mV...1000 V
in 10 measuring ranges, Upk = 3200 V
2. Voltage sensor input: Utrms = 3 mV...4 V / Udc = 3 mV...10 V
in 8 measuring ranges, Upk = 12.5 V
3. Current directly: Itrms = 500 μA...32 A
in 10 measuring ranges, Ipk = 120 A
4. Current sensor input: Utrms = 3 mV...4 V / Udc = 3 mV...10 V
in 8 measuring ranges, Upk = 12.5 V Only compatible with LMG671 and LMG641 power analyzers. Voltage Range Extender (L60-CH-S-VRE) to 1500 VDC optionally available.
|
| L60-CH-A
|
A-Channel for high-precision broadband measurements
|
|
|
Supports DualPath functionality, bandwidth DC-10 MHz,
Best power accuracy 0.015% + 0.01%
18 bit channel resolution
Max. 1000V/CAT II, 600V/CAT III, 300V/CAT IV
Measuring inputs
1. Voltage directly: Utrms = 300 mV...1000 V / Udc = 300 mV...1000 V
in 10 measuring ranges, Upk = 3200 V
2. Voltage sensor input: Utrms = 3 mV...4 V / Udc = 3 mV...10 V
in 8 measuring ranges, Upk = 12.5 V
3. Current directly: Itrms = 500 μA...32 A
in 10 measuring ranges, Ipk = 120 A
4. Current sensor input: Utrms = 3 mV...4 V / Udc = 3 mV...10 V
in 8 measuring ranges, Upk = 12.5 V
|
| L60-CH-B
|
B-Channel for general purpose measurements
|
|
|
Supports DualPath functionality, bandwidth DC - 500 kHz,
Best power accuracy 0.05% + 0.02%
Max. 1000V/CAT II, 600V/CAT III, 300V/CAT IV
Measuring inputs
1. Voltage directly: Utrms = 300 mV...1000 V / Udc = 300 mV...1000 V
in 10 measuring ranges, Upk = 3200 V
2. Current directly: Itrms = 500 μA...32 A
in 10 measuring ranges, Ipk = 120 A
3. Current sensor input: Utrms = 3 mV...4 V / Udc = 3 mV...10 V
in 8 measuring ranges, Upk = 12.5 V
|
| L60-CH-C
|
C-Channel for high-precision measurements up to 10kHz
|
|
|
Bandwidth DC - 10 kHz,
Best power accuracy 0.03% + 0.01%
Max. 1000V/CAT II, 600V/CAT III, 300V/CAT IV
Measuring inputs
1. Voltage directly: Utrms = 300 mV...1000 V / Udc = 300 mV...1000 V
in 10 measuring ranges, Upk = 3200 V
2. Current directly: Itrms = 500 μA...32 A
in 10 measuring ranges, Ipk = 120 A
3. Current sensor input: Utrms = 3 mV...4 V / Udc = 3 mV...10 V
in 8 measuring ranges, Upk = 12.5 V
|
