DN1000ID

1000 A

1:1500

0.0001 % of reading + 0.0001 % of full scale. Full scale refers to IPN DC.

400 kHz

DL2000ID

3000 A

1:1500

0.0007 %

300 kHz

DL2000ID-CB100

3000 A

1:1500

0.0007 %

300 kHz

DM1200ID-CD3000

1800 A

1:1500

0.0015 %

15 kHZ

BNC Voltage Output

DM1200UB-1V

1800 A

0.8333 V/kA

0.0035 %

400 kHz

DL2000UB-1V

3000 A

0.5 V/kA

0.002 %

300 kHz

Model	Peak & DC current @23°C	Ratio	Overall accuracy DC-10Hz (refers to nominal current)	Bandwidth
DSUB Current Output
DN1000ID	1000 A	1:1500	0.0001 % of reading + 0.0001 % of full scale. Full scale refers to IPN DC.	400 kHz
DM1200ID	1800 A	1:1500	0.0011 %	400 kHz
DL2000ID	3000 A	1:1500	0.0007 %	300 kHz
Calibration winding BNC
DL2000ID-CB100	3000 A	1:1500	0.0007 %	300 kHz
Calibration winding DSUB
DM1200ID-CD3000	1800 A	1:1500	0.0015 %	15 kHZ
DL2000ID-CD100	3000 A	1:1500	0.0007 %	300 kHz
BNC Voltage Output
DS1000UB-10V	1100 A	10 V/kA	0.0045 %	300 kHz
DM1200UB-1V	1800 A	0.8333 V/kA	0.0035 %	400 kHz
DM1200UB-10V	1320 A	8.3333 V/kA	0.0035 %	300 kHz
DL2000UB-1V	3000 A	0.5 V/kA	0.002 %	300 kHz
DL2000UB-10V	2200 A	5 V/kA	0.0035 %	300 kHz

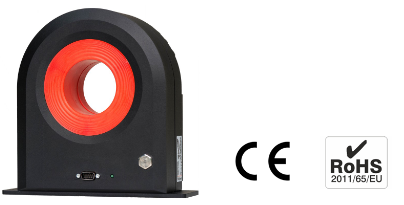

Current transducers 600 A to 3000 A
