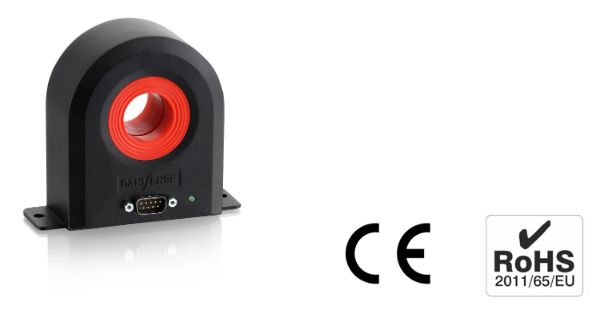

Current transducers 0 A to 600 A

Model	Peak & DC current @23°C	Ratio	Overall accuracy DC-10Hz (refers to nominal current)	Bandwidth
PCB Mount
DP50IP-B	72 A	1:250,500,1000	0.011 %	1000 kHz
DSUB Current Output
DS50ID	150 A	1:500	0.0088 %	1000 kHz
DS200ID	370 A	1:500	0.0022 %	1000 kHz
DS300ID	500 A	1:1000	0.00155 %	1000 kHz
DS400ID	600 A	1:2000	0.00155 %	300 kHz
DS600ID	1000 A	1:1500	0.0011 %	500 kHz
DQ500ID	800 A	1:1750	0.0011 %	300 kHz
DQ600ID	1000 A	1:1500	0.0011 %	500 kHz
DQ640ID-B	640 A	1:40 Progr 1:640, Step 20 A	-	-
DQ600ID-P1300	1300 A	1:1500	0.0011 %	300 kHz
DSUB calibration winding
DS200ID-CD100	370 A	1:500	0.0022 %	1000 kHz
DS200ID-CD1000	370 A	1:500	0.0022 %	1000 kHz
DS600ID-CD100	1000 A	1:1500	0.001 %	500 kHz
BNC Voltage Output
DS50UB-1V	100 A	1V:50A	0.0121 %	500 kHz
DS50UB-10V	55 A	10V:50A	0.0149 %	500 kHz
DS200UB-1V	330 A	1V:200A	0.006 %	500 kHz
DS200UB-10V	220 A	10V:200A	0.0085 %	500 kHz
DS300UB-1V	450 A	1V:300A	0.0045 %	500 kHz
DS300UB-10V	330 A	10V:300A	0.0045 %	500 kHz
DS400UB-1V	600 A	1V:400A	0.0045 %	500 kHz
DS400UB-10V	440 A	10V:400A	0.0045 %	500 kHz
DW500UB-2V	750 A	2V:500A	0,008 %	10 MHz
DS600UB-1V	950 A	1V:600A	0.0055 %	300 kHz
DS600UB-10V	660 A	10V:600A	0.0056 %	300 kHz
